Overview
The 2D Horizontal Profiler is the ideal tool for current measurements from a physical structure in, for example, port entrances. This ADCP provides the two horizontal flow components at multiple distances from the mounting and is commonly used in online applications where immediate access to current data is critical.
This instrument can also be used to perform river discharge measurements by River Insight.
- Currents
Highlights
-
Up to 130 m horizontal profiling range
-
Ideal for wall-mounted applications
-
Corrosion-free housing
Usage
-
Port entrances with challenging flow conditions
-
Flow measurements upstream and downstream of tidal turbines
-
Flow measurements from marine structures at draft depth
-
This instrument is used to perform river discharge measurements by River Insight.
Setup
The 2D Horizontal Profiler is set up using the Nortek deployment software, enabling users to customize measurement schemes and assess power requirements.
Deployment
While the 2D Profiler can be mounted on any subsurface structure, it is commonly attached to infrastructure surrounding port openings. It can provide real-time current information via a variety of telemetry options.
Data
The 2D Horizontal Profiler provides users with the two horizontal components of flow at different distances away from the structure it is mounted on. These data are often retrieved in real time to ensure safety in operations in busy ports and harbors.
Maximum profiling range |
100-130 m |
Cell size |
1.0-8.0 m |
Number of cells |
Typical 20-40, max. 128 |
Velocity range (along beam) |
±1 m/s, ±2.5 m/s, ±5 m/s |
Velocity range (horizontal) |
±2.3 m/s, ±5.75 m/s, ±11.5 m/s |
Accuracy |
±1% of measured value ±0.5 cm/s |
Velocity precision |
Consult instrument software |
Maximum output rate |
1 Hz |
Internal sampling rate |
2 Hz |
Sampling |
Same as velocity |
Resolution |
0.5 dB |
Dynamic range |
90 dB |
Transducer acoustic frequency |
400 kHz |
Number of beams |
2, slanted at 25° |
Beam width |
0.75° (1.5° total) |
Beam width vertical beam |
N/A |
Maximum depth |
N/A |
Data types |
N/A |
Sampling rate velocity (output) |
N/A |
Sampling rate AST (output) |
N/A |
No. of samples per burst |
N/A |
Range |
N/A |
Accuracy/resolution (Hs) |
N/A |
Accuracy/resolution (Dir) |
N/A |
Period range |
N/A |
Cut-off period (Hs) |
N/A |
Cut-off period (dir) |
N/A |
Temperature: |
Thermistor in head |
Temp. range |
-4 to +40 °C |
Temp. accuracy/resolution |
0.1 °C/0.01 °C |
Temp. time response |
< 5 min |
Compass: |
Solid state magnetometer |
Accuracy/resolution |
2°/0.1° for tilt <30° * |
Tilt: |
Solid state accelerometer |
Accuracy/resolution |
0.2° for tilt <30° /0.1° |
Maximum tilt |
Full 3D |
Up or Down |
Automatic detect |
Pressure: |
Piezoresistive |
Range |
30 m |
Accuracy / precision |
0.1% FS / 0.005% of full scale |
*TBC |
Capacity |
16 GB |
Accuracy |
±1 min/year |
Backup in absence of power |
1 year |
Ethernet |
0/100 Mbits Auto MDI-X |
TCP/IP, UDP, HTTP protocols |
|
Fixed IP/DHCP client/AutoIP, UPn |
|
Serial I/O |
Configurable RS-232 or RS-422 |
Serial communication baud rate |
9600-115200 Baud |
Controller interface |
ASCII command interface over Telnet and serial |
Output formats |
Binary, NMEA or ASCII data output. See Integration Manual |
Bulkhead (Impulse) |
MCBH-2-FS, MCBH-8-FS, optional Souriau |
Cable |
PMCIL-8-MP on 10 m polyurethane cable, Souriau option |
Functions |
MIDAS software for configuration and display - Contact your local sales office for access |
DC input |
12-48 VDC |
Absolute maximum DC input |
51 VDC |
Maximum peak current |
1 A |
Sleep current |
< 40 μA |
Transmit power |
Maximum 30 W, adjustable |
Operating temperature |
-4 to +40 °C |
Storage temperature |
-20 to +60 °C |
Shock and vibration |
IEC 721-3-2 |
EMC approval |
IEC 61000 |
Depth rating |
300 m |
Standard model |
Delrin® and polyurethane plastics with titanium screws |
Maximum diameter |
306 mm |
Maximum length |
203 mm |
Weight in air |
8.8 kg |
Weight in water |
3.2 kg |

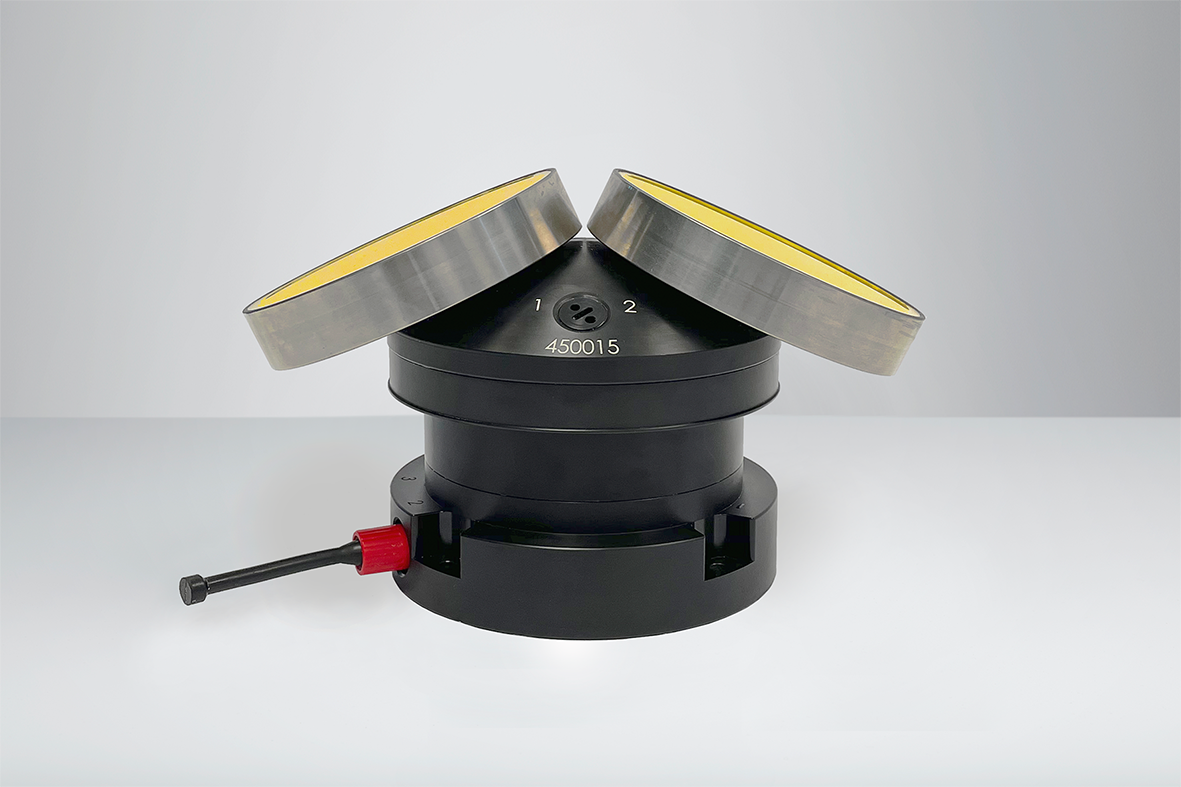

2D Horizontal Profiler 400 kHz, two beams
